Gunship from Larry Niven and Jerry Pournelle's novel Footfall. See my related post Michael for additional detail.

Image featured on Winchell Chung’s Atomic Rockets site, Michael Nuclear Pulse Propulsion Battleship Scroll down at the link.

Featured on Realistic Spaceship Illustrations Blog, Link: here

“They take one of the main guns off a Navy ship. Wrap a spaceship around it. Not a lot of ship, just enough to steer it. Add an automatic loader and nuclear weapons for shells. Steer it with TV.” —from Footfall, pg. 354

In the novel these Gunships are referred to as “Stovepipe’s.” I was far less concerned with designing to match that narrative description than I was with designing the most compact spacecraft possible capable of the mission described. Michaels construction (including all its auxiliary spacecraft and subsystems) takes place in secret under wartime conditions, perhaps the moniker is derived from a code name picked randomly (that’s how the 1958 Project Orion was named), or perhaps dockworkers handling the vehicle sections, packed in featureless cylindrical shipping containers strapped to pallets, named the craft, and it stuck. See Aldo Spadoni’s commentary on character-delivered descriptions on my Michael post.

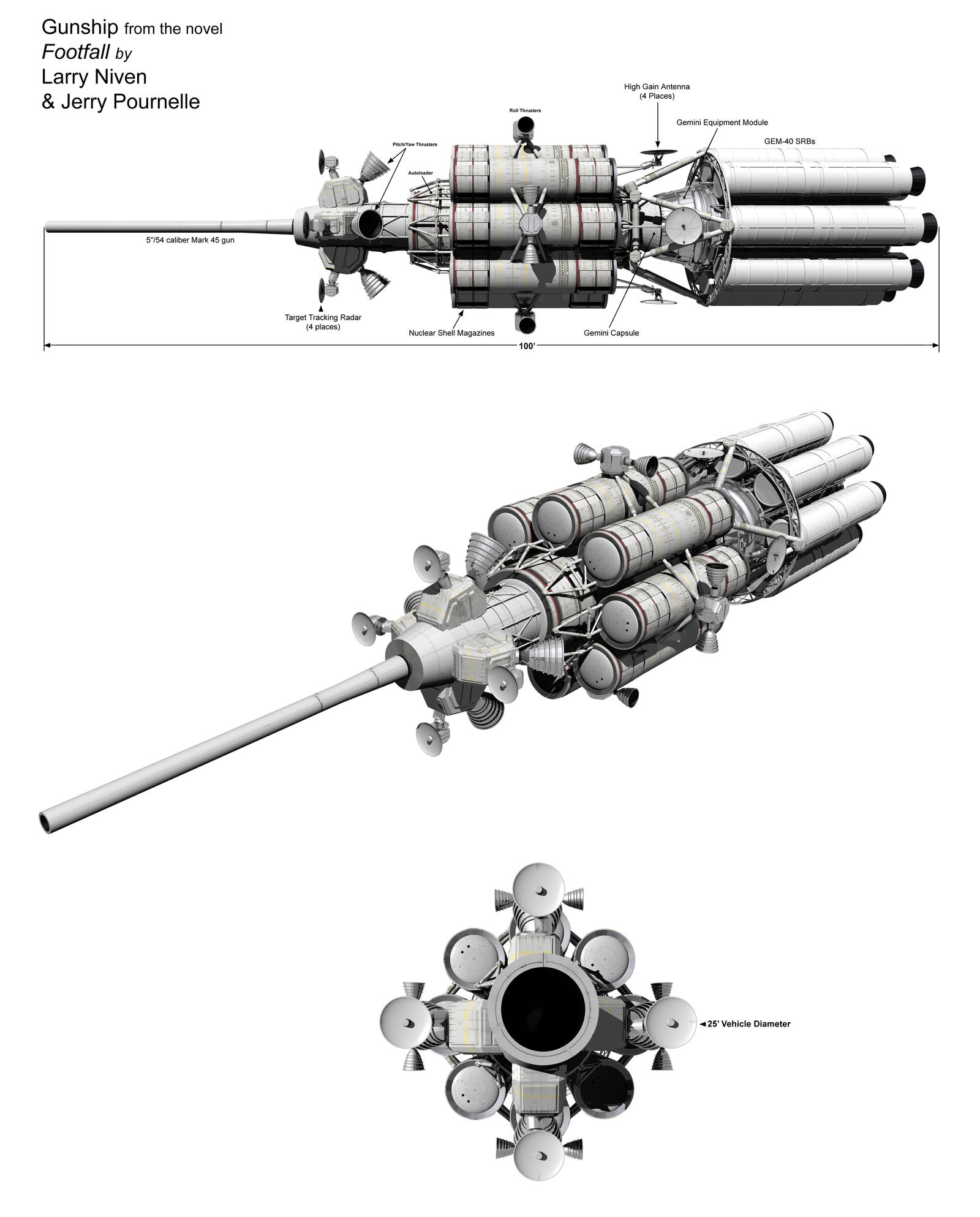

I built my Gunship around the 5"/54 caliber Mark 45 gun.

Nuclear Round

The nuclear round fired by the Gunship would be something akin to the UCLR1 Swift, a 622 mm long, 127 mm diameter nuclear shell, weighing in at 43.5 kg.

In 1958 a fusion warhead was developed and tested. At its test it yielded only 190 tons; it failed to achieve fusion and only the initial fission explosion worked correctly. There are unconfirmed reports that work on similar concepts continued into the 1970s and resulted in a one-kiloton warhead design for 5-inch (127 mm) naval gun rounds, these, however, were never deployed as operational weapons. See paragraph 9 (not counting the bulleted list) under United States Nuclear Artillery.

Gunship Crew & Crew Module

The text of the novel is unclear on the number of crew manning the Gunships, but my opinion is no more than 2 would be required, and dialogue in the novel tends to back this up. The loading mechanism is automated, so only targeting and piloting skills are involved. Considering urgency involved in readying Michael, I doubt an entirely new capsule, man-rated for spaceflight, would be considered. Michaels designers would fall back on tried and tested designs and modify them as required. In this case a stripped down Gemini spacecraft and its Equipment Module fits the bill nicely. The life support system matches the mission requirements. Leave off the heat shield (these are one-way missions), and reaction control system—the capsule never operates separate from the Gunship rig. Mount targeting and firing controls for the gun. Probably a single hatch rather than Gemini’s double hatch, and internal flat-screen displays rather than viewports—looking on this battle with naked eyes would leave the astronaut seared, radiation burned, and blinded.

Propulsion

“The exhausts of the gunboats were bright and yellow: solid fuel rockets.” —from Footfall, pg. 454

Eight SRBs akin to the GEM-40 allow options: they could be fired in pairs, allowing four separate burns, or two burns of 4, or a single burn of all eight – needs depending. The SRBs are strapped around a ten foot diameter 40 foot long core containing ample tank stowage for hypergolic reaction control propellants, pressurization gas, and nitrogen for clearing the breech and gun barrel. The reaction control system is used to aim the gun; propellant expenditure would be prodigious.
