Fiber Reinforced Plastic Armor Tutorial

116 13 7K (1 Today)
By Wilkowen   |
Published:
© 2013 - 2020 Wilkowen

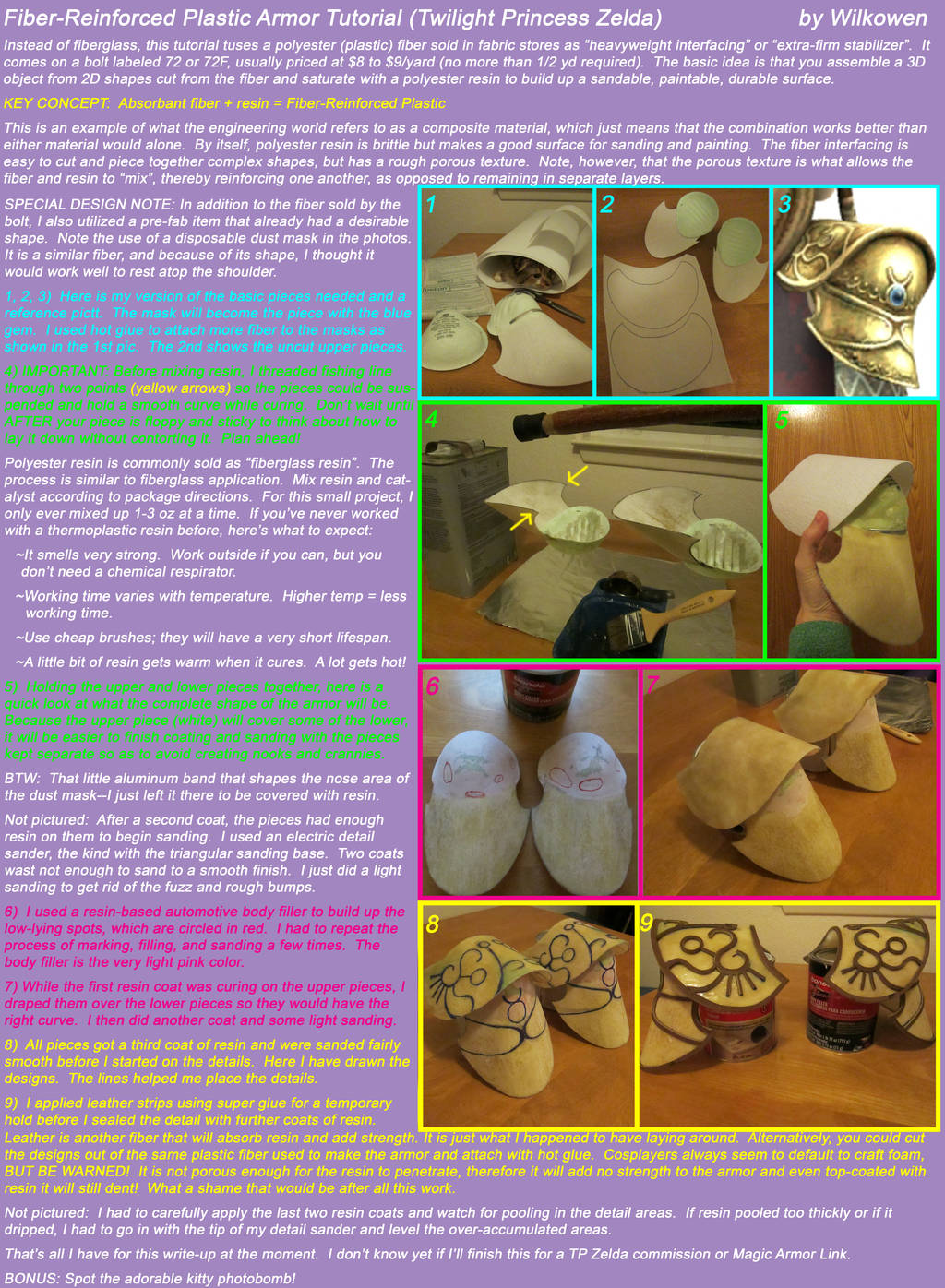

This is a simple tutorial illustrating my favorite technique for cosplay armor and props. The example shown here is an armor design from Twilight Princess, basic plate armor consisting of simple curves and raised design elements.
