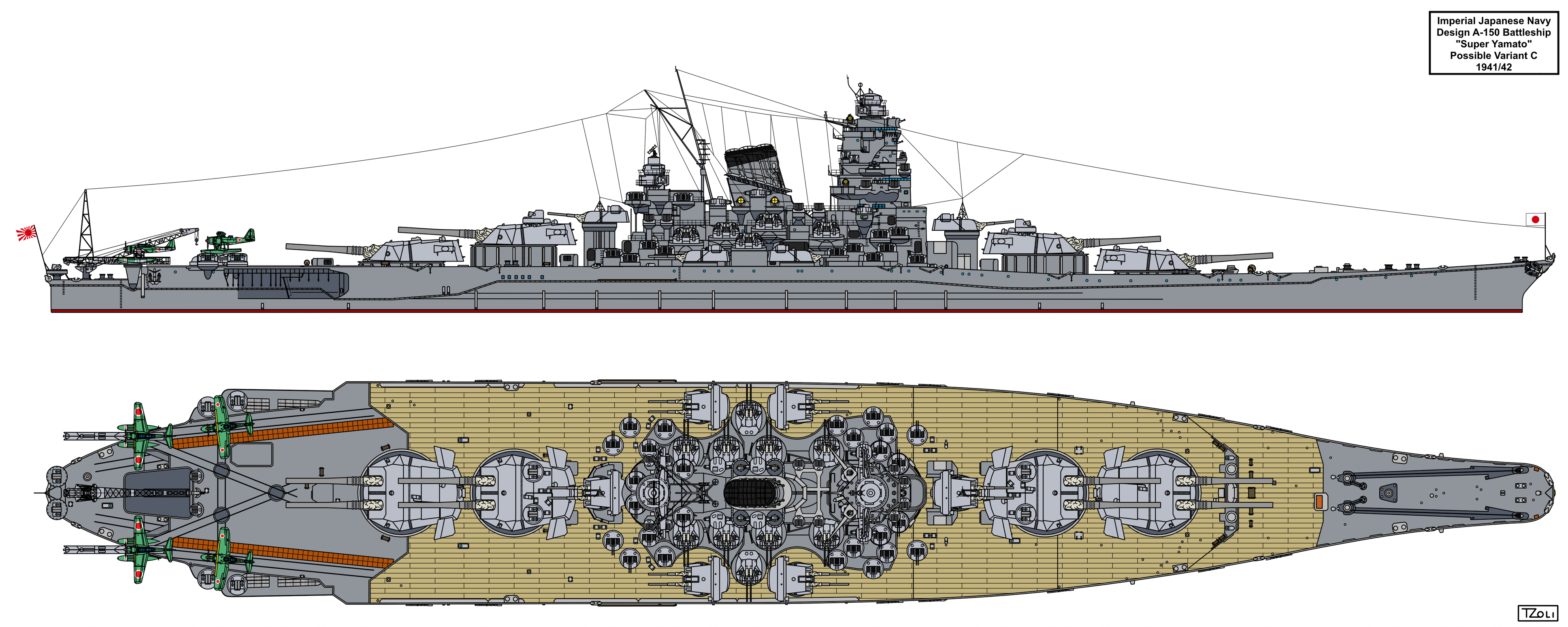

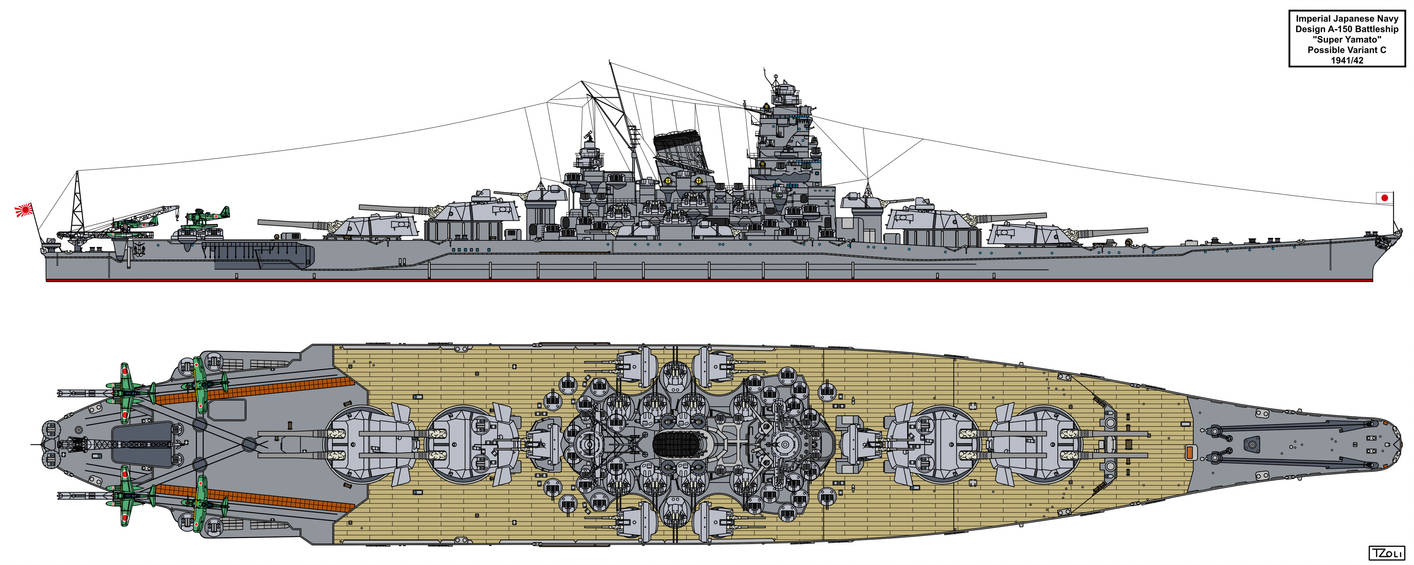

A-150 Super Yamato class possible variant C by Tzoli A-150 Super Yamato class possible variant C by Tzoli
On the same hull as on the B variant:
www.deviantart.com/tzoli/art/A…
I've used twin 20cm gun turrets as secondary guns. I've chosen this guns because some drawings and some sources says that the A-150 would be armed with these kind of weapons, though I found this unlikely.
Originally the C version would be the same as B except the triple 15,5cm guns replaced by twin 20cm ones but I discarded the idea as it did not really change the effectiveness of the ship, actually decreases it in same way as the 20cm guns while more powerful and could shoot further their number of barrels and their reload time is'n better than the excellent 15,5cm ones deceasing their purpose as anti destroyer guns. On the other hand on this version I sacrificed some 10cm mounts to place two 20cm gun turrets at the beams similar to these old drawings by the late CanisD:
oi49.photobucket.com/albums/f2…
cdn-live.warthunder.com/upload…

In the end this design's has the following characteristics:
Dimensions: 268 (wl) 275 (oa) x 40,5 x 11m
Displacement: 77.700tons (standard), 84.000tons (full load)
Armour: 240mm Deck, 460mm Belt  inclined at 20 degrees
Engines: 200.000shp, 4 shafts, Steam Turbines
Speed: 54km/h (29knots)
Range: 13.300km at 30km/h (7.000nm at 16knots)
Armaments:
4x2 51cm/45 Type 98 Cannons,
6x2 20cm/50 Type 90 Guns,
10x2 10cm/65 Type 98 DP-AA guns,
14x2 40mm/60 Type 5 AA Guns,
12x3 25mm/60 Type 96 AA Guns,
10x21 120mm Type 5 AA Rockets
7x Seaplanes (Aichi E16A Paul and Mitsubishi F1M Pete planes)
Sensors:
Type 13 air search radar antennaes (two set, both sides on the mainmast)
Type 14 air search radar (one set, on top of the aft range finder)
Type 21 air search radars (two set, on each arms of the main range finder fixed non rotating)
Type 32 surface search radars (two set one on each side of the bridge structure rotating ones)
