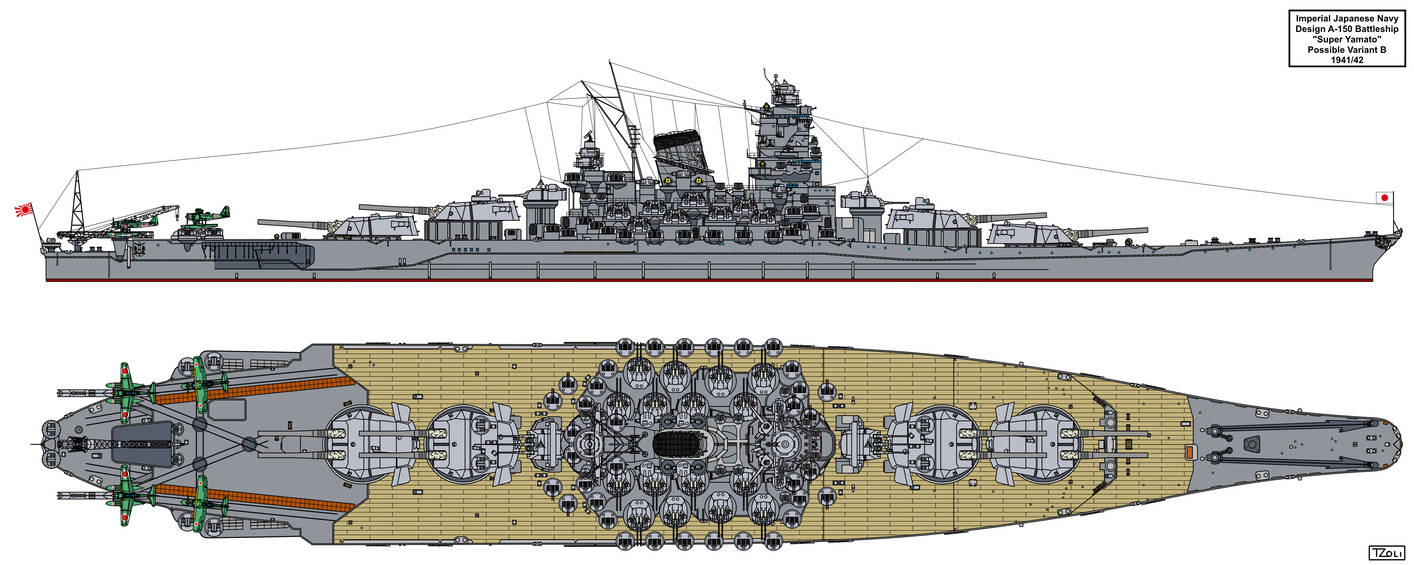

A-150 Super Yamato class possible variant B by Tzoli A-150 Super Yamato class possible variant B by Tzoli
This is another possible version of the A-150 type battleships the IJN considered building after the Yamatos. Similar armament to the A version:
www.deviantart.com/tzoli/art/A…
But I've lengthened and widened the hull to put larger engines inside and to mount the two triple 15,5cm superfiring over the 2nd and 3rd 51cm twin turrets.

This design of mine has the following characteristics:
Dimensions: 268 (wl) 275 (oa) x 40,5 x 11m
Displacement: 76.000tons (standard), 82.300tons (full load)
Armour: 240mm Deck, 460mm Belt  inclined at 20 degrees
Engines: 200.000shp, 4 shafts, Steam Turbines
Speed: 54km/h (29knots)
Range: 13.300km at 30km/h (7.000nm at 16knots)
Armaments:
4x2 51cm/45 Type 98 Cannons,
2x3 15,5cm/60 Type 90 Guns,
16x2 10cm/65 Type 98 DP-AA guns,
14x2 40mm/60 Type 5 AA Guns,
22x3 25mm/60 Type 96 AA Guns,
10x21 120mm Type 5 AA Rockets
7x Seaplanes (Aichi E16A Paul and Mitsubishi F1M Pete planes)
Sensors:
Type 13 air search radar antennaes (two set, both sides on the mainmast)
Type 14 air search radar (one set, on top of the aft range finder)
Type 21 air search radars (two set, on each arms of the main range finder fixed non rotating)
Type 32 surface search radars (two set one on each side of the bridge structure rotating ones)
Add a Comment:

:iconoboy220:
oboy220 Featured By Owner Aug 4, 2018
Such a threatening monster. Great work as always ;)
Reply
:iconheavenly777protector:
heavenly777protector Featured By Owner Aug 4, 2018
if this isn't in world of warships it would be a CRIME.
Reply
:icontzoli:
Tzoli Featured By Owner Aug 5, 2018  Hobbyist Digital Artist
Wargaming thought 51cm cannons are too large for their game hence no A-150, Incomparable, H-44 and the USN's 1930's maximum battleship design
Reply
:iconheavenly777protector:
Okay maybe use as a special event boss?
Reply
:icontzoli:
Tzoli Featured By Owner Aug 26, 2018  Hobbyist Digital Artist
That does not matter as you cannot play it.
Reply
:iconheavenly777protector:
No but it would make a cool excuse😎
Reply
:icondarkwanderer123456:
darkwanderer123456 Featured By Owner Aug 4, 2018
It's a CRIME to put this ship in the game because is OP, unbalance and unfun to play against.
Reply
:iconheavenly777protector:
SUPER BIAS!
Reply
:iconoboy220:
oboy220 Featured By Owner Aug 4, 2018
Against the poor souls that would face it in battle. =(
Reply
:iconheavenly777protector:
heavenly777protector Featured By Owner Aug 9, 2018
isn't that what PAY to WIN is all about? who cares about fairness in a game? I'M BEING TOTALLY SARCASTIC HERE. gmaes should not be unbalanced. BUT it would make an awesome final boss.
Reply
:iconoboy220:
oboy220 Featured By Owner Aug 11, 2018
I can get behind that level of sarcasm and the idea of having this ship as a final boss ;)
Reply
:iconheavenly777protector:
Seriously like you need your entire fleet to take it out. It would make a great special event!
Reply
:iconfrankvc:
FrankvC Featured By Owner Aug 4, 2018
Amazing and great as always Thks so much for your work And by the way, what does the “core membership” is? Just curious you know Sweating a little...
Reply
:icontzoli:
Tzoli Featured By Owner Aug 4, 2018  Hobbyist Digital Artist
It's Deviantarts premium system. It contains the usual like other sites: name change, folder reaangement multi layer folders, rearrange your start page or home page, extra widgets etc etc.
Reply
:iconblendershot:
BlenderShot Featured By Owner Aug 4, 2018
wow with the video game world this is a great design but in reality it would fail as the specs you have cannot support the use of all the turrets or the man power to man all the guns your power plant would need to be larger to take on the extra load of the electrical running the targeting system and the mechanical used to move the turrets. the extra space needed to house the ammunition and fuel and birthing compartments isn't factored in either
Reply
:icontzoli:
Tzoli Featured By Owner Aug 4, 2018  Hobbyist Digital Artist
Sorry but you are wrong.
Actually I did make a simulation on this design and apart from the turbine power it is a very feasible design enough space both for ammo, electrical power plants and crew. With the software I've used it requires around 220.000shp for 29knots but I'm not sure how well it could take into account the bulbous bow of the Yamatos hence I reduced it to 200.000.

According to the survivors and various report Yamato's rooms were very livable and spacious so redesigning them to be less roomier could mean more living space. Also it's not like all he 2300 sailors slept the same time, the "worked" in shifts like today.
Reply
:iconmullemuh:
Mullemuh Featured By Owner Aug 4, 2018
amazing work!
Reply
:icontzoli:
Tzoli Featured By Owner Aug 4, 2018  Hobbyist Digital Artist
thx
Reply
:iconxingyugang:
XingYugang Featured By Owner Aug 4, 2018
日本军舰的防空机枪这么多
Reply
:icontzoli:
Tzoli Featured By Owner Aug 4, 2018  Hobbyist Digital Artist
???
Reply
:icongolgotha17:
Golgotha17 Featured By Owner Aug 4, 2018
If Google Translate is correct, he's commenting on how many AA guns there are on japanese warships.
Reply
:icontzoli:
Tzoli Featured By Owner Aug 4, 2018  Hobbyist Digital Artist
I see
Reply
:iconwritingscifi65:
writingscifi65 Featured By Owner Aug 3, 2018  Professional Writer
And it was bigger than the Iowa class because the Japanese would never have to transit the Panama Canal.
Reply
:icontzoli:
Tzoli Featured By Owner Aug 4, 2018  Hobbyist Digital Artist
Montana was bigger too than the Iowa
Reply
:iconwritingscifi65:
writingscifi65 Featured By Owner Aug 4, 2018  Professional Writer
Though by the end of the war, it was realized that the CV was THE most important ship in any power-projecting navy.

But today, CV's are the new Dinosaurs that BBs once were. Far easier to project might with super silent guided missile submarines.
Reply
:icontzoli:
Tzoli Featured By Owner Aug 5, 2018  Hobbyist Digital Artist
It became the new pride of a Nation's navy, a thing of Prestige.
Reply
:iconwritingscifi65:
writingscifi65 Featured By Owner Aug 5, 2018  Professional Writer
At 6.2 BILLION a pop, and 150 million per Seawolf sub, i think the money would be better served elsewhere, like paying down the National Debt maybe...
Reply
:icontzoli:
Tzoli Featured By Owner Aug 5, 2018  Hobbyist Digital Artist
The Seawolfs and the Zumwalts were cut down dramatically but not the new supercarriers.
Reply
:iconwritingscifi65:
writingscifi65 Featured By Owner Aug 5, 2018  Professional Writer
If they were using the money to build the S.H.I.E.L.D. Heli-Carriers, I'd be all for it.
Reply
:icontzoli:
Tzoli Featured By Owner Aug 5, 2018  Hobbyist Digital Artist
No such technology exist.
You need large rotors to lift a few ton helicopter. There are not large enough rotors to lift a multi 100 thousand tons carrier!
Reply
:iconwashusama:
Washusama Featured By Owner Aug 4, 2018  Student Photographer
Land-based aircraft have the range needed to operate out of airfields thousands of kilometers from where they are performing missions, the necessity of keeping a supercarrier in the area is greatly diminished and smaller LHD type ships that can double as landing craft and forward bases as well as providing helicopter support (such as the HMAS Canberra & HMAS Adelaide) are a sensible choice.
Reply
:iconwritingscifi65:
writingscifi65 Featured By Owner Aug 4, 2018  Professional Writer
Yet our Navy, who had its ass handed to them by a Swedish submarine, insists that CVNs are the way to go...
Reply
:iconangelisgoodwen:
AngelisGoodwen Featured By Owner Aug 3, 2018
Very nice!!
Reply
:icontigerestoque:
TigerEstoque Featured By Owner Aug 3, 2018  Hobbyist General Artist
Beast.
