MMD Tutorial Model Draw Order

87 39 5K (1 Today)
By Trackdancer   |   Watch
Published: February 28, 2013

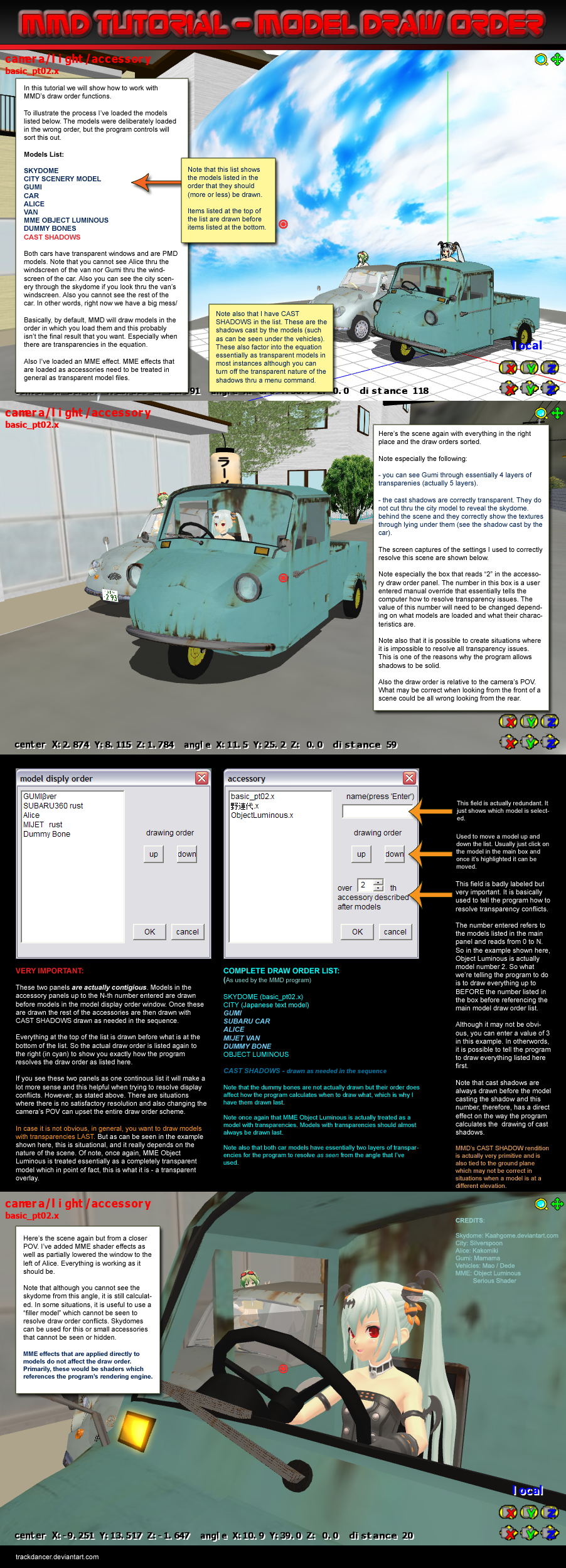

This tutorial serves as an introduction as to how to sort out the order in which MMD draws models which is important to resolve draw order conflicts. The program really does need to be told what to draw and when as it has no intrinsic intelligence as to how to resolve a scene.

If you have any questions, please post these below. In general I will not be able to resolve a specific problem that you're having as I can't see what you're doing; so please refrain from asking for specific solutions.

However, do note that in most instances you should be able to resolve most conflicts by ordering your models as shown here in a logical manner. Also, the program can in some instances, be incapable of resolving all conflicts. Each scene really needs to be considered on a case-by-case basis.


PLEASE DO NOT ASK FOR MODEL LINKS
Credits are in the tutorial panel
Image size
902x2500px 1.72 MB
