Gradient Effect in Chaotica

6 min read
tatasz's avatar
By tatasz
27 Favourites
4 Comments
5K Views
In this tutorial, i will explain how to make a fading gradient background effect in Chaotica, as it was done in this work, for example:

Monument Valley by tatasz

The technique can be easily adapted to Apophysis (using either custom plugins or linked transforms).

Also, if you have any trouble with the World Editor, please check my Chaotica Editor Basics tutorial.


Gradient Background Effect


You can use this technique on almost any parameters. The only requirement is to have at least one iterator with blur. For the tutorial example, i will use a random world below:

1 by tatasz

The first step is to switch to World Editor and add a new iterator (use the "new iterator" button on top of the editor window). Here, it is the iterator 6:

2 Iter by tatasz

Select the transforms node, and click on the "new transform" button to add a new transform:

3 Transf by tatasz

Now replace the default linear transform type with sineblur as below:

4 Sineblur by tatasz

Now, we need to edit the post transforms. Select the flam3 transform node, and click on the "Show post transforms" button in the node editor:

5 Show Post by tatasz

Add a new transform to the post transform node (use the "new transform" button") and replace the default linear with log

6 Log by tatasz

Now, select weights node. Set weights to all iterators to 0, except the ones that have blur (iterator 4 here):

7 Weights by tatasz

Now you should have something like this:

Mean by tatasz

Time to move the gradient around. Select flam3 transform node, and click on the "add post affine" button.

9 Add Post Affine by tatasz

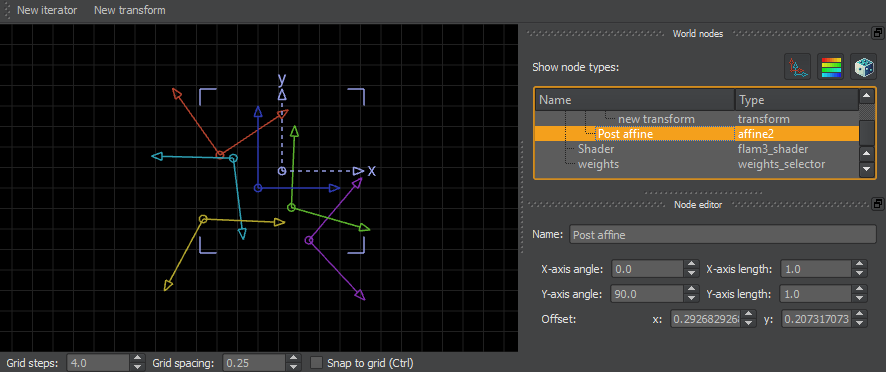

Select the added post affine, and move, rotate and scale it in the editor until the gradient is positioned in a way you like it. This is the default position:

10 Postaff by tatasz

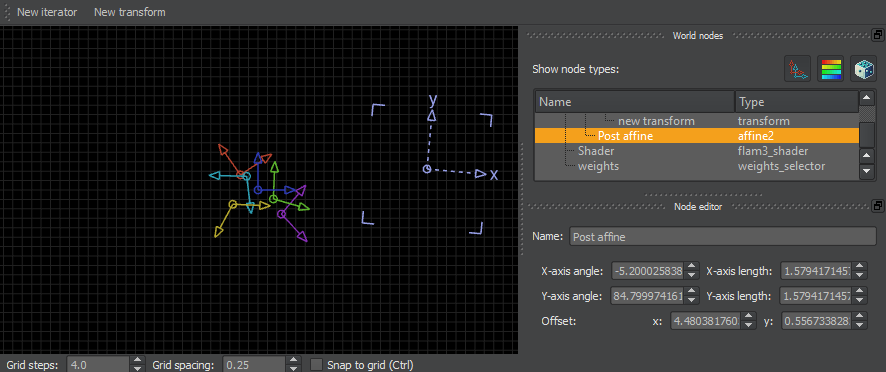

And this is where i moved it:

11 Post Aff by tatasz

To get this:

Final by tatasz


Some editing tips and observations


Keep in mind this is not an actual background. The gradient will "overlap" with your fractal.

Also, this technique will work better for low gamma values.

A few things that you definitely should try:
  • instead of sineblur, try using other blurs (for example radial or gaussian)
  • replace log with polar or polar2
  • move and skew and rotate the gradient post transform
  • edit the gradient´s shaders
Explore and have fun :la:
