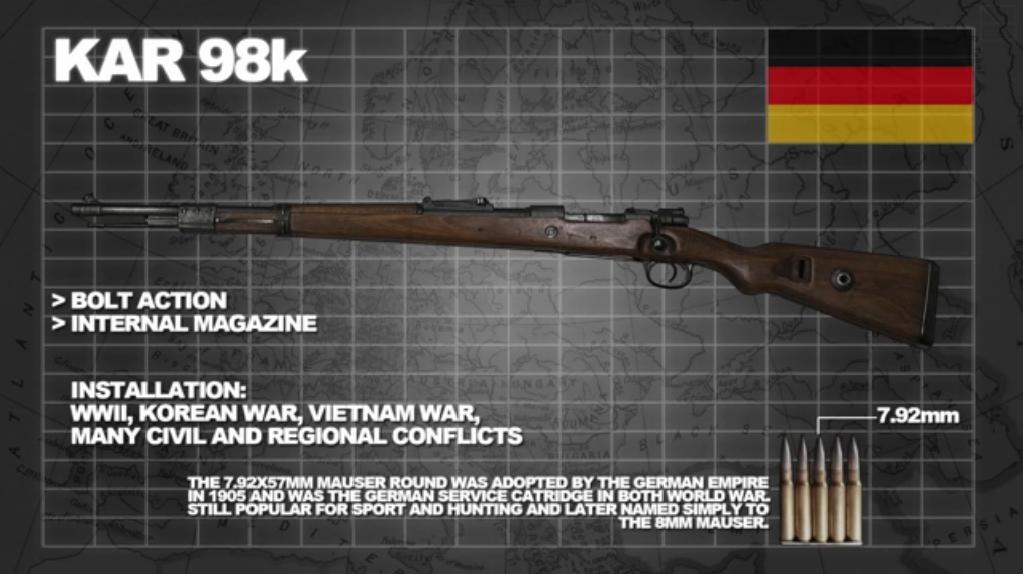

Kar 98k

Call of duty World at War

The Karabiner 98 Kurz (often abbreviated Kar98k, K98, or K98k) is a bolt action rifle chambered for the 7.92×57mm Mauser cartridge that was adopted on 21 June 1935 as the standard service rifle by the German Wehrmacht.^[2] It was one of the final developments in the long line of Mauser military rifles. Although supplemented by semi- and fully automatic rifles during World War II, it remained the primary German service rifle until the end of World War II in 1945. Millions were captured by the Soviets at the conclusion of World War II and were widely distributed as military aid. The Karabiner 98k therefore continues to appear in conflicts across the world as they are taken out of storage during times of strife.

In February of 1934 the Heereswaffenamt (Army Weapons Agency) ordered the adoption of a new military rifle. The Karabiner 98k was derived from earlier rifles, namely the Mauser Standardmodell of 1924 and the Karabiner 98b, which in turn had both been developed from the Gewehr 98. Since the Karabiner 98k rifle was shorter than the earlier Karabiner 98b (the 98b was a carbine in name only, a version of Gewehr 98 long rifle with upgraded sights), it was given the designation Karabiner 98 Kurz, meaning "Carbine 98 Short". Just like its predecessor, the rifle was noted for its reliability, great accuracy and an effective range of up to 500 metres (550 yd) with iron sights and 1,000 metres (1,090 yd) with an 8× telescopic sight

The Karabiner 98k is a controlled-feed bolt-action rifle based on the Mauser M 98 system. Its internal magazine could be loaded with five 7.92×57mm Mauser cartridges from a stripper clip or one-by-one. The straight bolt handle found on the Gewehr 98 bolt was replaced by a turned-down bolt handle on the Karabiner 98k. This change made it easier to rapidly operate the bolt, reduced the amount the handle projected beyond the receiver, and enabled mounting of aiming optics directly above the receiver on the Karabiner 98k. Each rifle was furnished with a short length of cleaning rod, fitted through the bayonet stud. The joined rods from 3 rifles provided one full-length cleaning rod.

The metal parts of the rifle were blued, a process in which steel is partially protected against rust by a layer of magnetite (Fe₃O₄). Such a thin black oxide layer provides minimal protection against rust or corrosion, unless also treated with a water-displacing oil to reduce wetting and galvanic corrosion. From 1944 onwards phosphating/Parkerizing was introduced as a more effective metal surface treatment.

Originally the Karabiner 98k iron sight line had an open post type front sight, and a tangent-type rear sight with a V-shaped rear notch. From 1939 onwards the post front sight was hooded to reduce glare under unfavourable light conditions and add protection for the post. These standard sight lines consisted of somewhat coarse aiming elements making it suitable for rough field handling, aiming at distant area fire targets and low light usage, but less suitable for precise aiming at distant or small point targets. The rear tangent sight was graduated for 1935 pattern 7.92×57mm IS cartridges from 100 m to 2000 m in 100 m increments. These cartridges were loaded with 12.8 g (197 gr) sS (schweres Spitzgeschoß – "heavy pointed bullet") ball bullets.

Early Karabiner 98k rifles had solid walnut wood or from 1943 some had solid oak wood one-piece stocks. From 1937 onwards the rifles had laminated stocks, the result of trials that had stretched through the 1930s.^[5] Plywood laminates are stronger and resisted warping better than the conventional one-piece patterns, did not require lengthy maturing, and were cheaper. The laminated stocks were, due to their dense composite structure, somewhat heavier compared to one-piece stocks.^[6] In addition to the use of walnut and beech laminate, elm was used in small quantities. The butts of the semi-pistol grip Karabiner 98k stocks were not uniform. Until early 1940 the stocks had a flat buttplate. After 1940 some stocks had a cupped buttplate to prevent the separation of the butt stock. All stocks had a steel buttplate.

When issued the Karabiner 98k came accompanied with assorted accessory items including a sling, a protective muzzle cover, and for field maintenance a Reinigungsgerät 34 ("Cleaning Kit 34") or RG34 kit. Introduced in 1934, the Reinigungsgerät 34 consisted of a flat 85 mm (3.3 in) wide by 135 mm (5.3 in) long sheet metal container with two hinged lids carried on the person, which held an oiler, a take down tool for removing the floorplate and cleaning the receiver of the rifle, an aluminum barrel pull-through chain, a cleaning and an oiling brush, and short lengths of tow used as cleaning patches.^[7]

The Karabiner 98k rifle was designed to be used with an S84/98 III bayonet.^[8] The S84/98 III had a blade length of 252 mm (9.9 in) and an overall length of 385 mm (15.2 in) and was accompanied by a bayonet frog.

In 1942, an attachable rifle grenade launcher called the Gewehrgranatengerät or Schiessbecher ("shooting cup") was introduced that was developed based on rifle grenade launcher models designed during World War I. The 30 mm Schiessbecher cup-type rifle grenade launcher could be mounted on any Karabiner 98k and was intended to replace all previous rifle grenade launcher models. The rifle grenade launcher could be used against infantry, fortifications and light armored vehicles up to a range of 280 m (306 yd). For these differing tasks, several specialized grenades with accompanying special propelling cartridges were developed for the 1,450,113 produced Schiessbecher rifle grenade launchers. The rifle grenade-propelling cartridges fired a wooden projectile through the barrel to the rifle grenade that, upon impact, automatically primed the rifle grenade. The Schiessbecher could be mounted on the Karabiner 98a, G98/40, StG 44 and FG 42.

A removable, muzzle-mounted HUB-23 suppressor, visually resembling the Schießbecher, was manufactured for the Karabiner 98k. After several suppressor proposals from the firearms industry and the SS-Waffenakademie (SS Weapons Academy) the HUB-23 was produced based on a design proposal by Unteroffizier Schätzle. The HUB-23 weighs 0.5 kg (1.1 lb) and is 180 mm (7.1 in) long. The maximum effective range of a Karbiner 98k with a HUB-23 mounted and firing special subsonic Nahpatrone ("near cartridge") reduced load ammunition with a muzzle velocity of 220 m/s (722 ft/s) was 300 m (330 yd). The use of the HUB-23 suppressor and subsonic ammunition resulted in a sound signature reduction by 75%.^[11] The HUB-23 suppressor and the special subsonic ammunition were mainly used by special forces units such as the Brandenburgers and snipers.

For snipers, Karabiner 98k rifles selected for being exceptionally accurate during factory tests were fitted with a telescopic sight as sniper rifles. Karabiner 98k sniper rifles had an effective range up to 1,000 m (1,094 yd) when used by a skilled sniper. The German Zeiss Zielvier 4x (ZF39) telescopic sight had bullet drop compensation in 50 m (55 yd) increments for ranges from 100 to 800 m (109 to 875 yd) or in some variations from 100 to 1,000 m (109 to 1,094 yd). There were ZF42, Zeiss Zielsechs 6x and other telescopic sights by various manufacturers like the Ajack 4x and 6x, Hensoldt Dialytan 4x and Kahles Heliavier 4x with similar features employed on Karabiner 98k sniper rifles. Several different mountings produced by various manufacturers were used. The Karabiner 98k was not designed to accept telescopic sights.^[13] Attaching such sights to a Karabiner 98k required machining by a skilled armourer. A telescopic sight mounted low above the center axis of the receiver will not leave enough space between the rifle and the telescopic sight body for unimpaired operation of the bolt handle or the three-position safety catch lever. This ergonomic problem was solved by mounting the telescopic sight relatively high above the receiver and sometimes modifying or replacing the safety operating lever or using an offset mounting to position the telescopic sight axis to the left side in relation to the receiver center axis. A common minor modification was replacing the stock buttplate with a waffled anti-slip "sniper" buttplate. Approximately 132,000 of these sniper rifles were produced by Germany.
