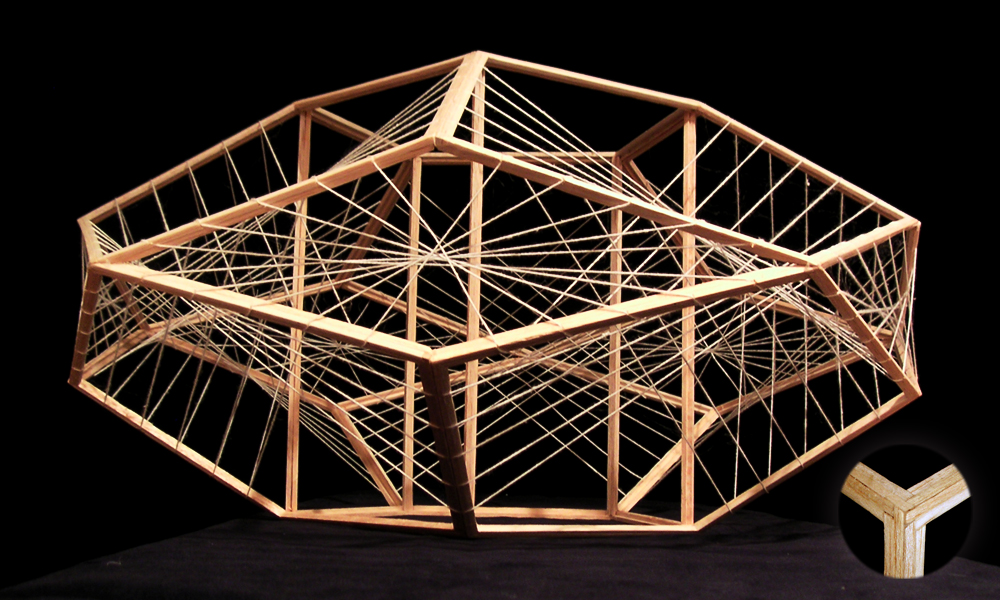

This planar study was a project for my Sophomore year design class. Its purpose was a composition of multiple planes examining the relationships created through intersection and the spaces formed between different surfaces. For my design, I started with a superstructure derived from an icosahedron, truncated and torqued to create a faceted jewel of sorts. Within the framework I wrapped a continuous plane that goes around four times before feeding into itself again. In the center of the structure I left a pentagonal prism as a void, the vertical pylons of which serve primarily a structural purpose.

Because I built each face of the superstructure individually before fitting them all together, the joints (detail lower right) are exceptionally strong, with eighteen balsa sticks interlocking in a herringbone pattern.

Media: 1/8" Balsa Sticks, String, Elmer's Glue-All.
