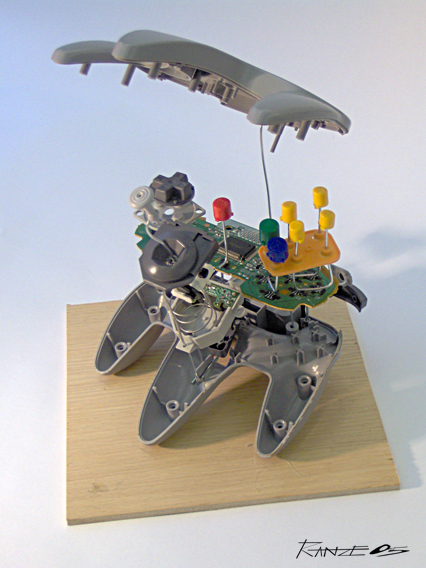

This was done for an M&;P class I took last semester. The project was to reverse engineer a product and examine with what and by what means it was made. Instead of pasting the parts up on a board and lableing them, I thought this was a better way to present this particular product. It also has a nice sculptural appeal, I feel.
