Geodesic Dome Gear
By bugman123
5 Favourites3 Comments3K Views

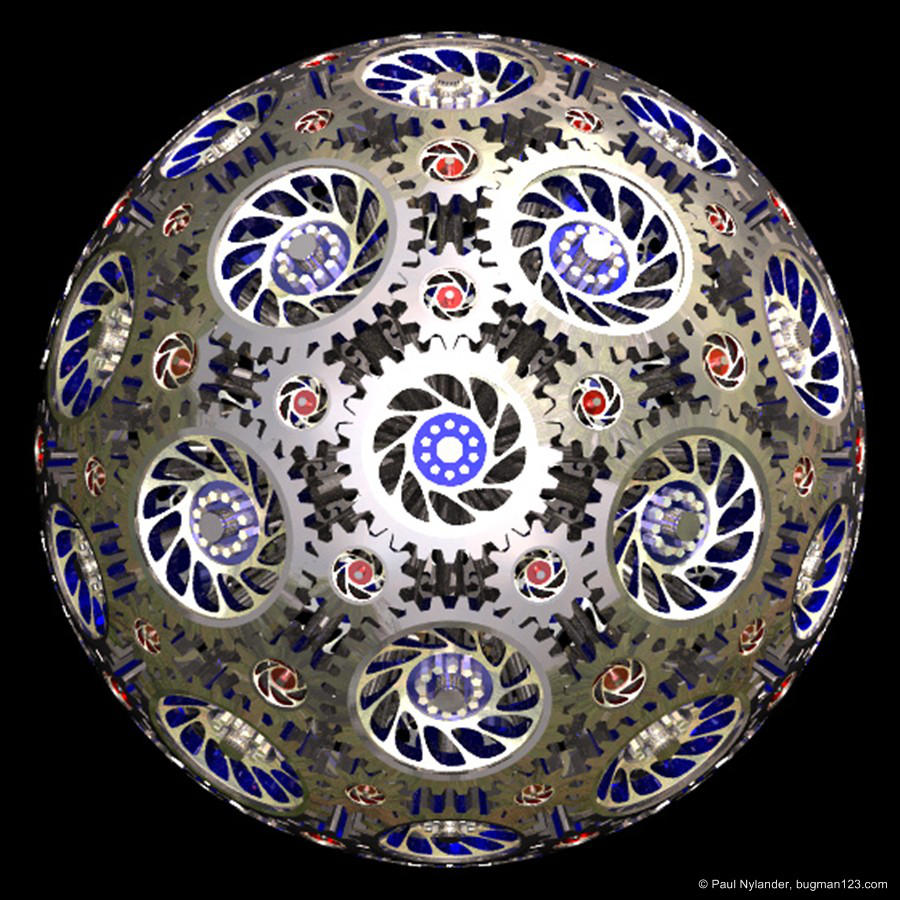

These spiral bevel gears are arranged to rotate freely along a spherical surface. This image shows 92 gears (32 large blue gears plus 60 small red gears) arranged on the faces of the dual of a geodesic dome.
Image details
Image size
900x900px 225.26 KB
Published:
© 2011 - 2021 bugman123
Comments3
Join the community to add your comment. Already a deviant? Log In
sweet job
I haven't given up on producing an animated version of your concept.
I based my initial feasibility study, instead, on a buckyball with 92 gears. (I think one of us is wrong about gear count.)
Getting the gears to mesh, properly, was half calculation and half luck. (Okay, maybe 75% luck!)
92 Gears - Feasibility Study
Your model inspired me to give it a go. Thanks!
-Taff
I based my initial feasibility study, instead, on a buckyball with 92 gears. (I think one of us is wrong about gear count.)
Getting the gears to mesh, properly, was half calculation and half luck. (Okay, maybe 75% luck!)
92 Gears - Feasibility Study
Your model inspired me to give it a go. Thanks!
-Taff
Oops, my total was correct, but my blue count was only including the larger blue gears, which was clearly wrong. There are actually two different sizes of blue gears in my model: 20 large bue gears and 12 small blue gears. Now I have made the correction. Anyway, congratulations on figuring out how to mesh the teeth together quite nicely.
