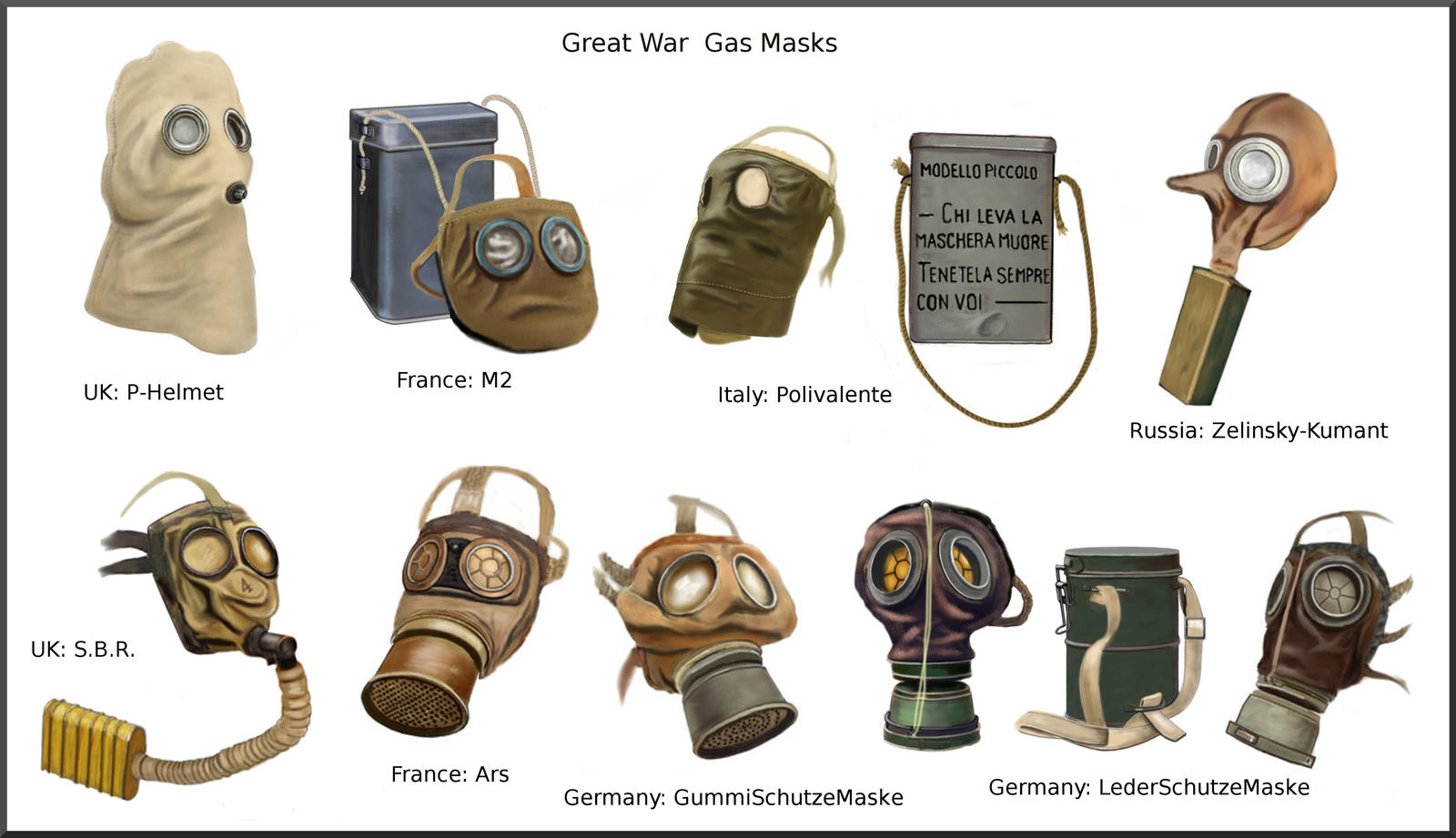

ww1 gas mask by AndreaSilva60 ww1 gas mask by AndreaSilva60
WWI Technical Reference table

In world war I were used three class of poison gas:  Tear gas - Chocking - Blister/Vescicant

At the beginning were used tear gas like bromine and chloroacetone since 1914, then chocking agent in 1915,
like Chlorine and Phosgene. Chlorine was easy detected, because its evident green color and its strong smell.
The countermeasure was to cover mouth and nose with a cloath dumped with water or urine, because the gas
is water-soluble and it react with the urea contained in urine. The first gas maskes given to the troop were
canvas funnel cointaing gauzes soaked with  neutralizing substance, or gas helmet, like the british P Helmet, soaked
in sodium hyposulfite.
Then during 1915 come the Phosgene, the main agent of fatalities due to gas during the great war.
The Phosgene was invisible and quite odorless, just an inkling of hay.  Unseen and undetected it could act for hours,
without evidence of effect on the exposed men, then appeared the effect, irritation of eyes, dyspnea and bronchospasm.
Against the phosgene were added more gauzes soaked with different neutralizing substances, but the chemical
neutralizing masks and pad were not  completely reliable, furthermore, if the mask was bathing neutralizing agents
were washed away.


In 1917 appeared the Mustard Gas, or Yperite, it was a blister-vescicant gas, it wasn't as deadly
as Phosgene, but it was the more invalidant agent of the war, and it persisted after the launch  for days,
and sometimes for weeks in the trenches.

Thus they were introduced new maskes to physical absorption, rather than chemical
neutralization. These maskes possessed of external filters containing layers of active
carbon, usually produced from seeds of fruit, and layers of gauze containing neutralizing
substances. These maskes proved very effective and  were  usually made of rubber or rubberized fabric,
not all maskes were equipped with escape valve, and this forced the wearer to breathe the same air,
or make great efforts to expel it from the filter. Mustard gas tended to infiltrate
the rubber maskes, so the German army, so parsimonious in materials, produced from 1917 the
leather mask impregnated with reagents neutralizing rather than rubber.
The filter could last about 5 hours, during attack, so the soldier had often an old chemical
neutralization mask for back-up or a spare filter.
The maskes were very wide, especially below the viewers, so the soldier could insert forefingers
externally in the folds of the mask and clean inside the condensation that formed on the lenses.

The gas maskes were the most precious assets of the soldiers.
